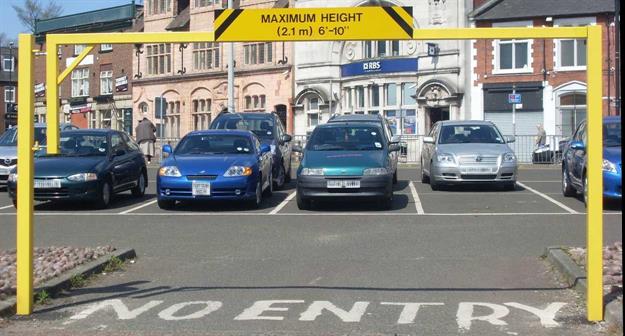

Standard Swinging Height Barrier

Product reference:

BA1.HR7

Part of our Strong & Simple range.

Our standard swinging height barrier is fabricated using 100mm x 100mm box section for the upright posts & 75 x 75mm for the cross beam.
Our height barrier is a single arm design. For anything over the length of 6 metres, we would recommend our heavy duty pivoting height restriction barrier.

Our height barriers are perfect for deterring unwanted visitors, including travellers, to private areas. The strong, steel cross beam will not allow vehicles over a certain height: hence the name. The pivoting height barrier can be unlocked to allow access to legitimate vehicles. Height restriction barriers are the perfect solution for deterring unwanted visitors.

Maximum height allowance 2.1 metre. Root fix design for concreting in.

Knocking bar available at extra cost.

Please note: We would always advise root fixing your height barrier at least half of the above ground height. Therefore a 2.1m height barrier should be concreted into the ground with a 1m root depth.

Select your required size below:

The specification for your selected product is shown in the table below:

Attribute	Value

Barrier Colour

Select your required barrier colour. Our barriers can be powder coated in any colour, so if you require a specific colour which isn't listed then please contact us with the details.

The colour shown has been matched as closely as possible and does not serve as a standard for RAL colour products as it depends on your monitor. Use offical RAL colour product chart for reference.

Galvanised

Select whether your barrier is galvanised (to prevent rust)

Knocking bar

Select whether you want to add an optional knocking bar. This will act as a warning to vehicles before they hit the barrier itself.
